Geometry Node

../../../../../../_images/render_blender-render_materials_nodes_input_geometry.png

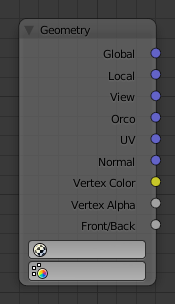

Geometry node.

The geometry node is used to specify how light reflects off the surface. This node is used to change a material’s Normal response to lighting conditions.

Use this node to feed the Normal vector input on the Material node, to see how the material will look (e.g. shine, or reflect light) under different lighting conditions. Your choices are:

Inputs

This node has no inputs.

Properties

UV Map
To select a listed UV map.
Color Layer
To select a listed vertex color data (Vertex Paint, Weight Paint).

Outputs

Global
Global position of the surface.
Local
Local position of the surface.
View
Viewed position of the surface.
Orco
Using the Original Coordinates of the mesh.
UV
Using the UV coordinates of the mesh, selected in the field in bottom node.
Normal
Surface Normal; On a flat plane with one light above and to the right reflecting off the surface.
Vertex Color
Allows for output value of group vertex colors, selected in the field in bottom node.
Vertex Alpha
Allows for output alpha value of vertex.
Front/Back
Allows for output to take into account front or back of surface is light relative the camera.

Note

These are exactly the same settings as in the Mapping panel for Textures, though a few settings, like Stress or Tangent, are missing here. Normally you would use this node as input for a Texture Node.

Geometry Node Example using a UV image

../../../../../../_images/render_blender-render_materials_nodes_input_geometry_example.png

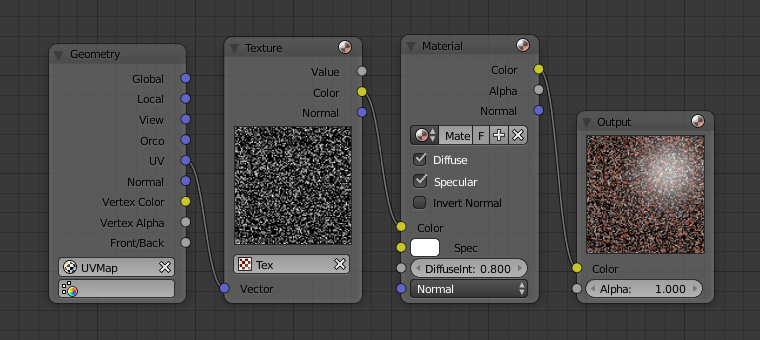

Setup to render a UV-Mapped Image Texture.

E.g.: To render a UV-mapped image, you would use the UV output and plug it into the Vector Input of a texture node. Then you plug the color output of the texture node into the color input of the material node, which corresponds to the setting on the Map To panel.
